| Parameter | Unit / Description |
|---|---|
| Temp control | |
| Cooling capacity 630 Vdc model¹ | 4,3 kW |
| COP cooling 630 Vdc¹ | 2,4 |
| Cooling capacity 350 Vdc model¹ | 4,3 kW |
| COP cooling 350 Vdc¹ | 2,4 |
| Cooling capacity 48 Vdc model¹ | TBD |
| COP cooling 48 Vdc¹ | TBD |
| Cooling capacity 24 Vdc model¹ | TBD |
| COP cooling 24 Vdc¹ | TBD |
| Max airflow indoor (free blowing) | 900 m³/h |
| Refrigerant | R134A (non-flammable, A1, allowed in EU for mobile applications, cooling batteries and equipment). R1234yf or R513a on request |
| Max ambient temperature | 55 °C |
| Min ambient temperature | 10 °C |
| Max indoor temperature | 55 °C |
| Min indoor temperature | 15 °C |
| Climate control norm or specification | EN 14813-1:2006 |
| Electrical | |
| Primary voltage range 630 Vdc model | 400 - 850±5 Vdc |
| Primary voltage range 350 Vdc model | 210 - 480±5 Vdc |
| Primary voltage range 48 Vdc model | 36–60 Vdc |
| Primary voltage range 24 Vdc model | 19–32 Vdc |
| Secondary voltage range | 16-32 Vdc |
| Control system | CAN 2.0A/B, J1939, CANopen, Remote on/off, HMI panel, or self-controlled |
| Power consumption 630 Vdc model | 0-3,5 kW |
| Power consumption 350 Vdc model | 0-3,5 kW |
| Power consumption 48 Vdc model | 0-3,2 kW |
| Power consumption 24 Vdc model | 0-2,8 kW |
| Power consumption secondary voltage | 0-0,75 kW (only for 630 and 350 models) |
| Degree of protection (components protected from water and dust) | IP68 (condensor), IP20 (evaporator) |
| Mechanical | |

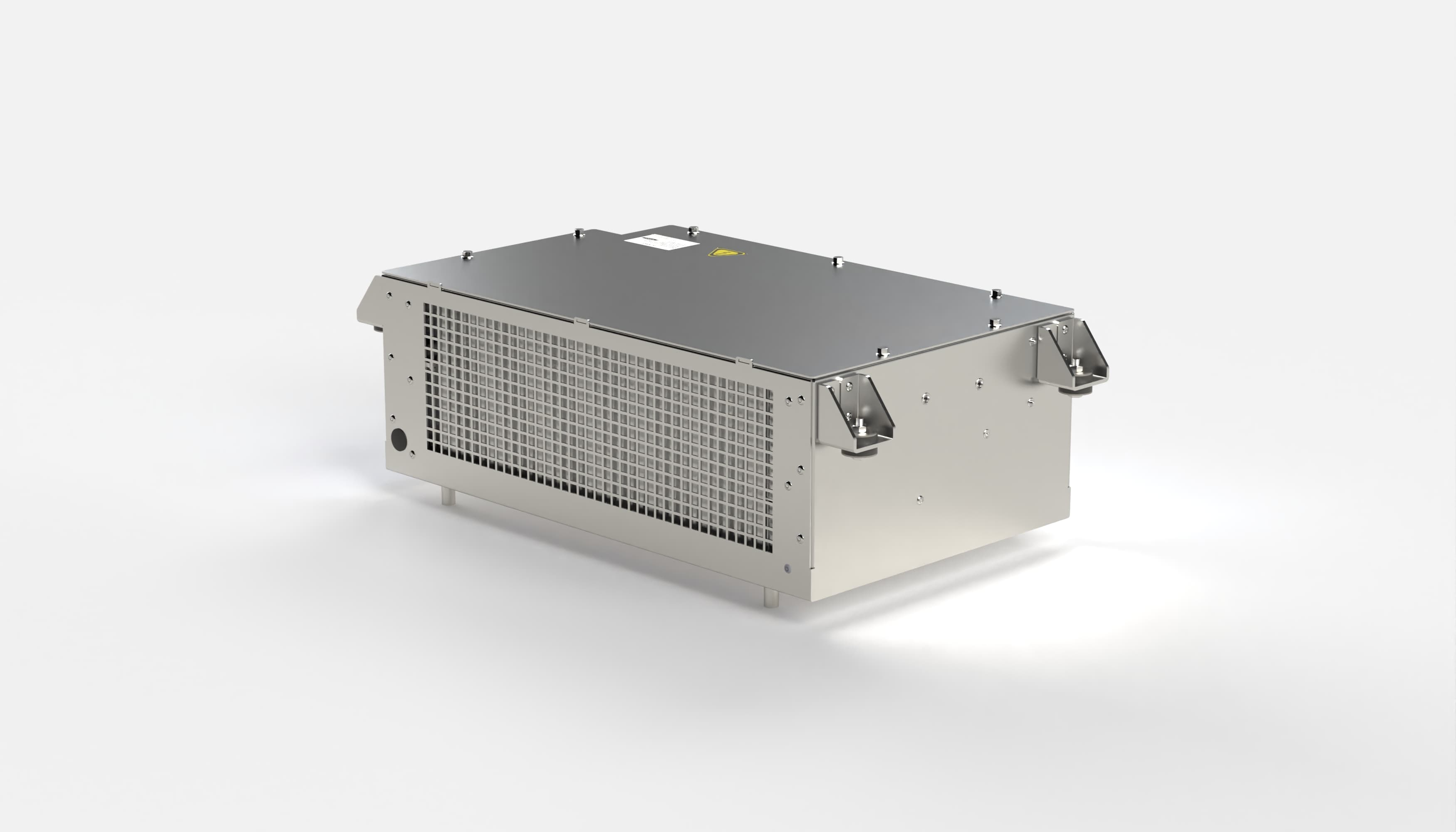

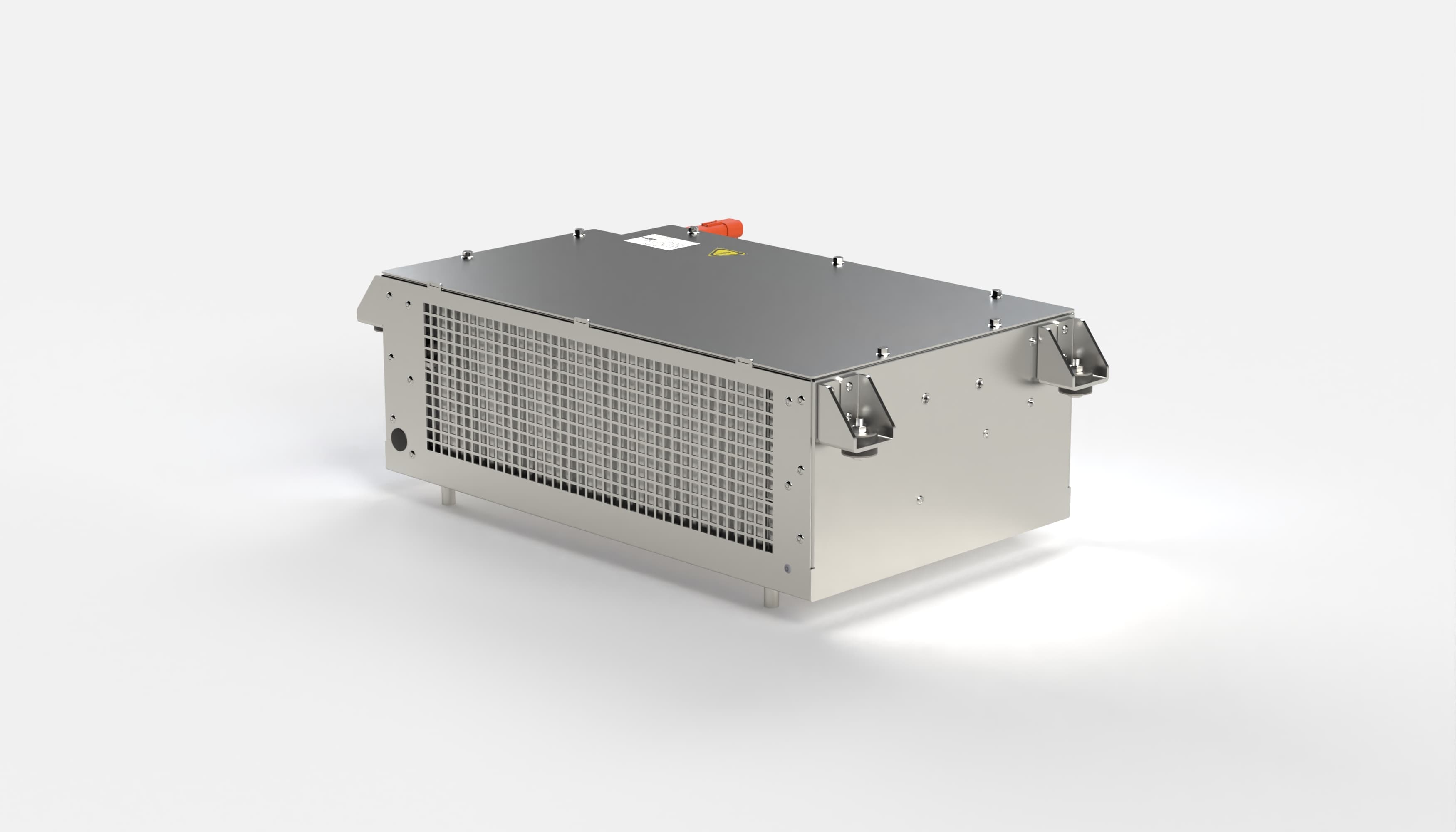

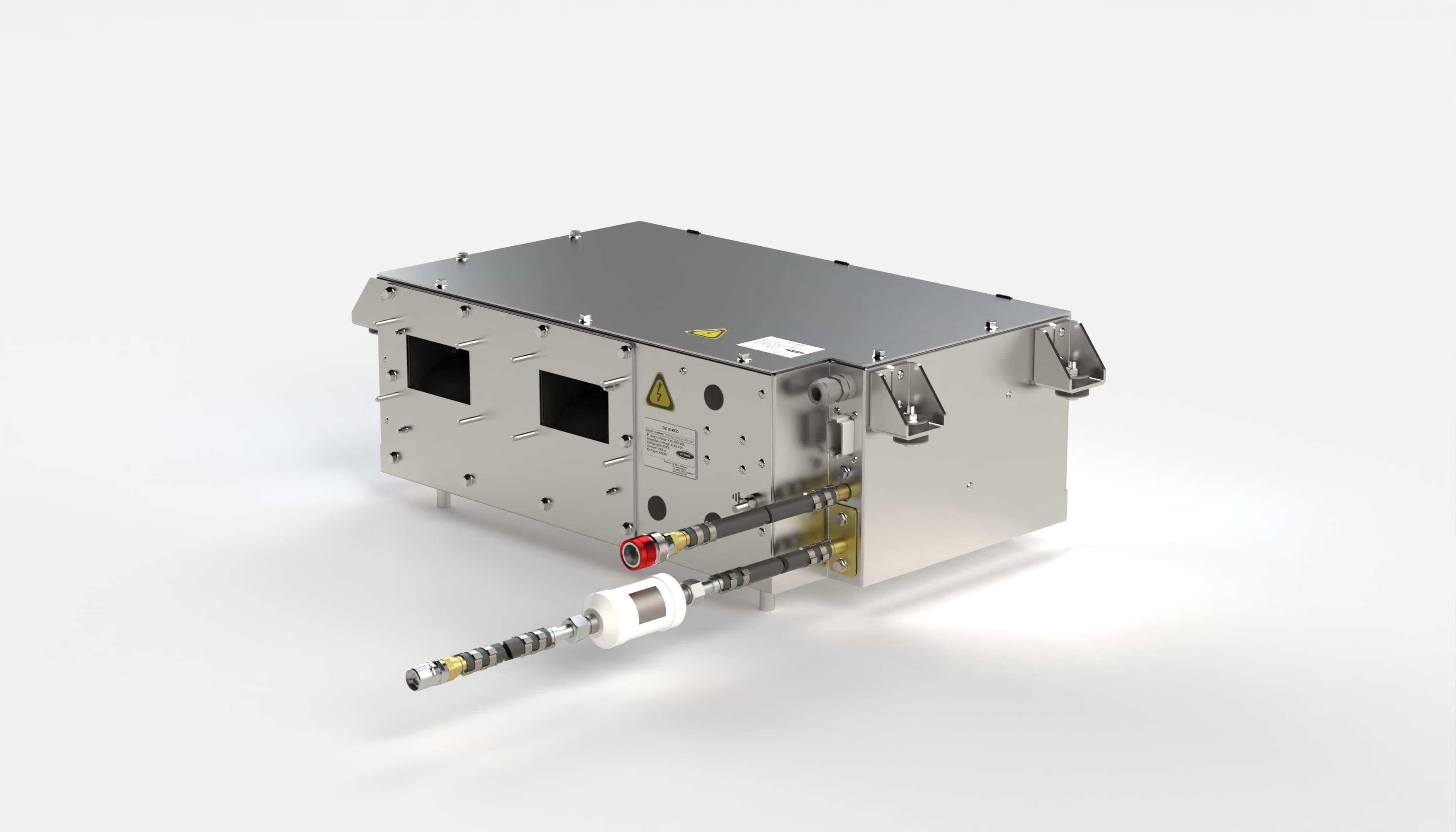

| Size evaporator | 400 x 756 x 228 mm (L × W × H) |

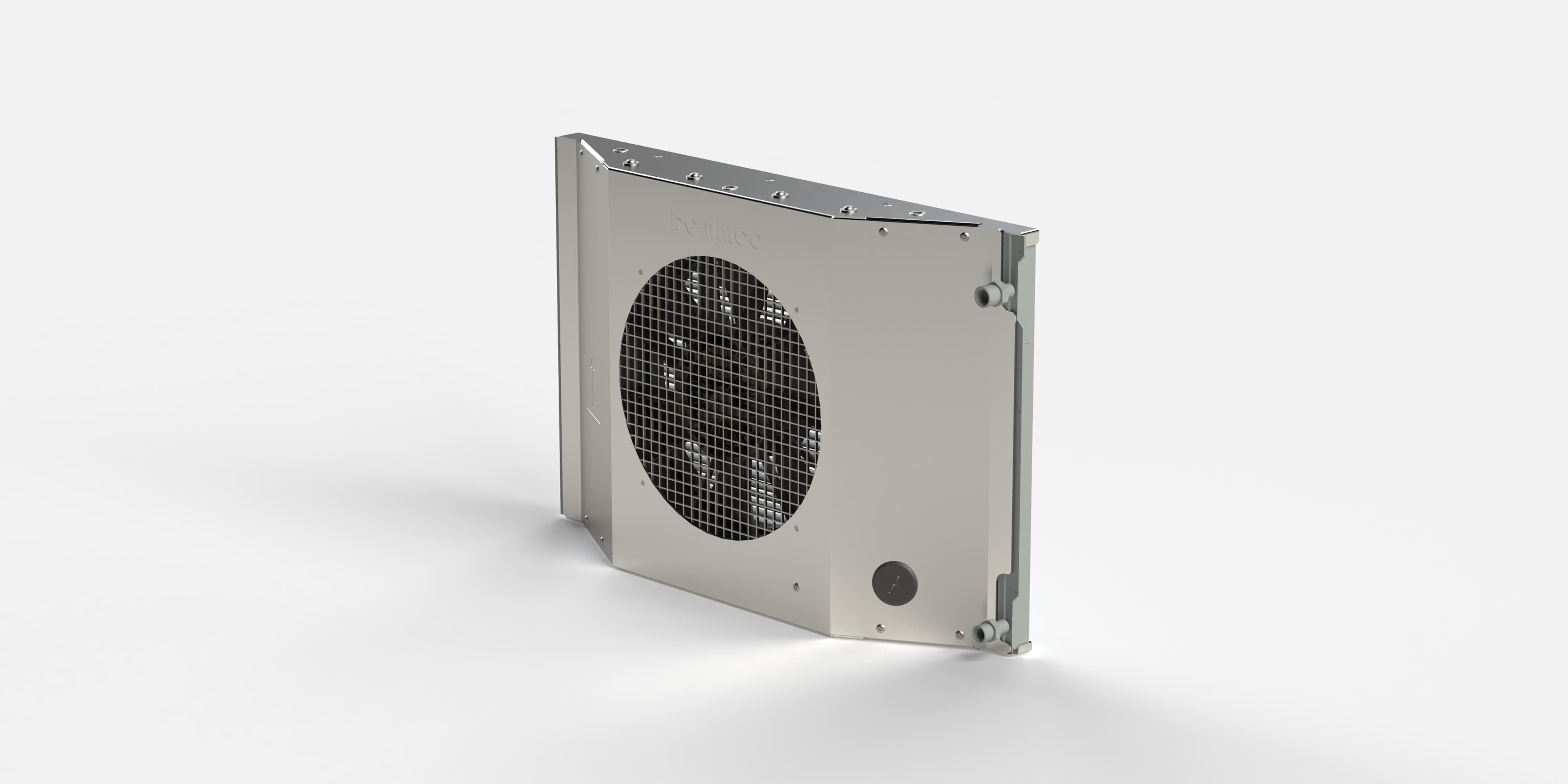

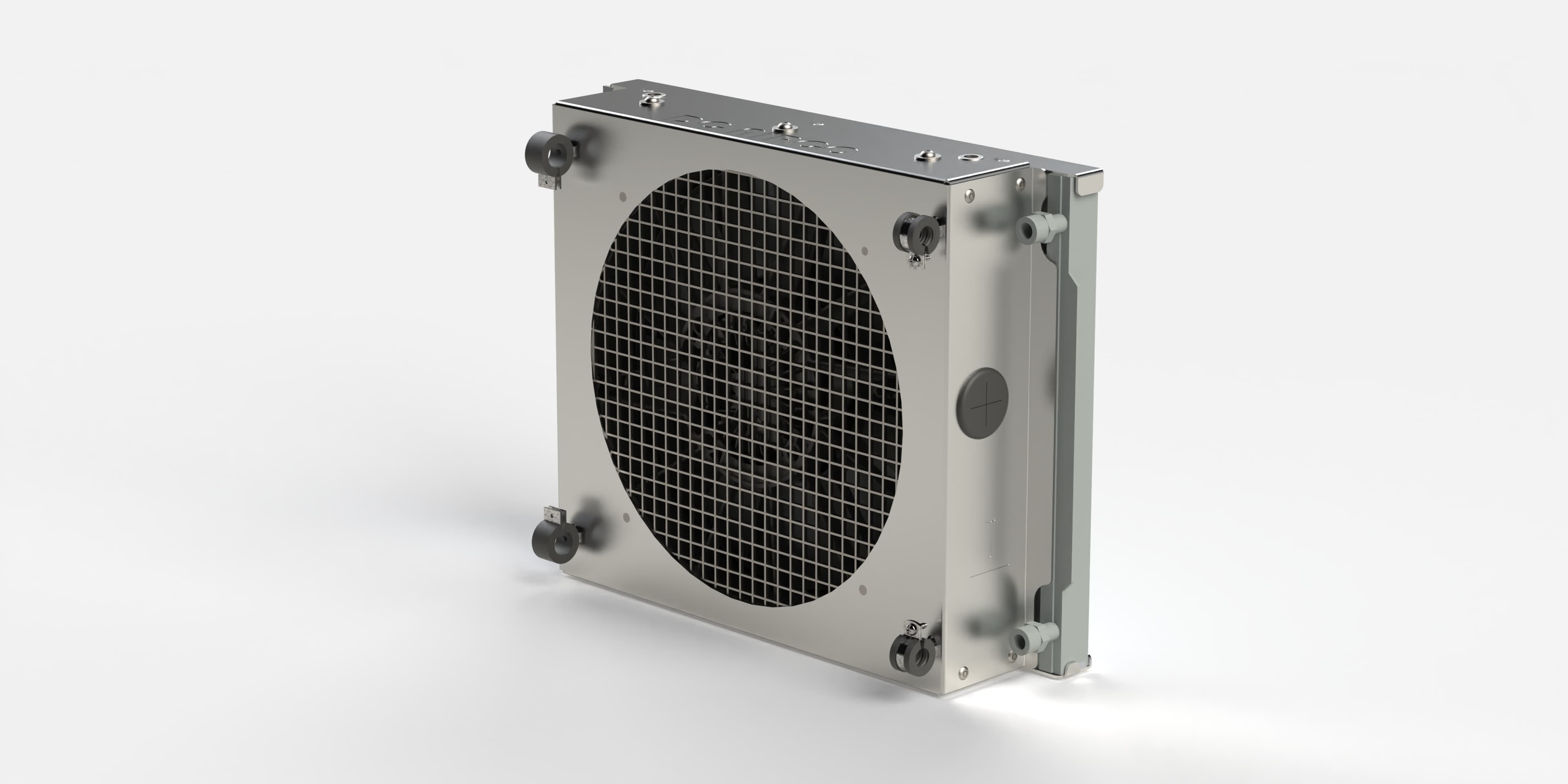

| Size condenser | 115 x 710 x 457 mm (L × W × H) |
| Weight evaporator | 27 kg |
| Weight condenser | 9,5 kg |
| Refrigerant hose length | 2 m |
| Material body | Aluminium |
| Material condensor | Aluminium |
| Colour body | Bare aluminium |
| Colour condensor | Bare aluminium |
| Sound level indoor (1 m, non-resonating mounting) | 69 dB(A) 100% power, 69 dB(A) 50% power |
| Sound level outdoor (1 m distance non-resonating mounting) | 70 db(A) @ 25 °C |
¹27 °C 50% RH indoor / 35 °C outdoor. Cooling duty varies on climatic conditions and altitude- consult the factory for specific applications.
