| Parameter | Value |
|---|---|
| Temp control | |
| Heating capacity electric 230 Vac model | 1,5 kW |
| Voltage for heating capacity electric 230 Vac model | 230 Vac |
| Max airflow (free blowing) | 200 m³/h |
| Max temperature | 40 °C |
| Min temperature | -20 °C |
| Climate control norm or specification | EN 14813-1:2006 or equivalent |
| Electrical | |
| Primary voltage range 230 Vac model | 230 Vac ±5%, 1-phase, 50 Hz ±5% |
| Control system | External relay |
| Power consumption 230 Vac model | 1,5 kW |
| EMC norm or specification | Designed according to EN50121-3-2:2006 |
| Degree of protection (components protected from water and dust) | IP20 |
| Mechanical | |
| Size | 541 x 112 x 307 mm (L × W × H) |
| Weight | 6,5 kg |
| Material | Stainless steel |
| Colour | Bare stainless steel |
| Sound level (1 m, non-resonating mounting) | 68 dB(A) |
| Hazard level (according to EN 45545-2:2020+A1:2023) | HL 1 |
| Shock and vibration norm or specification | Designed according to EN61373 |
New
Rolling stock
190151

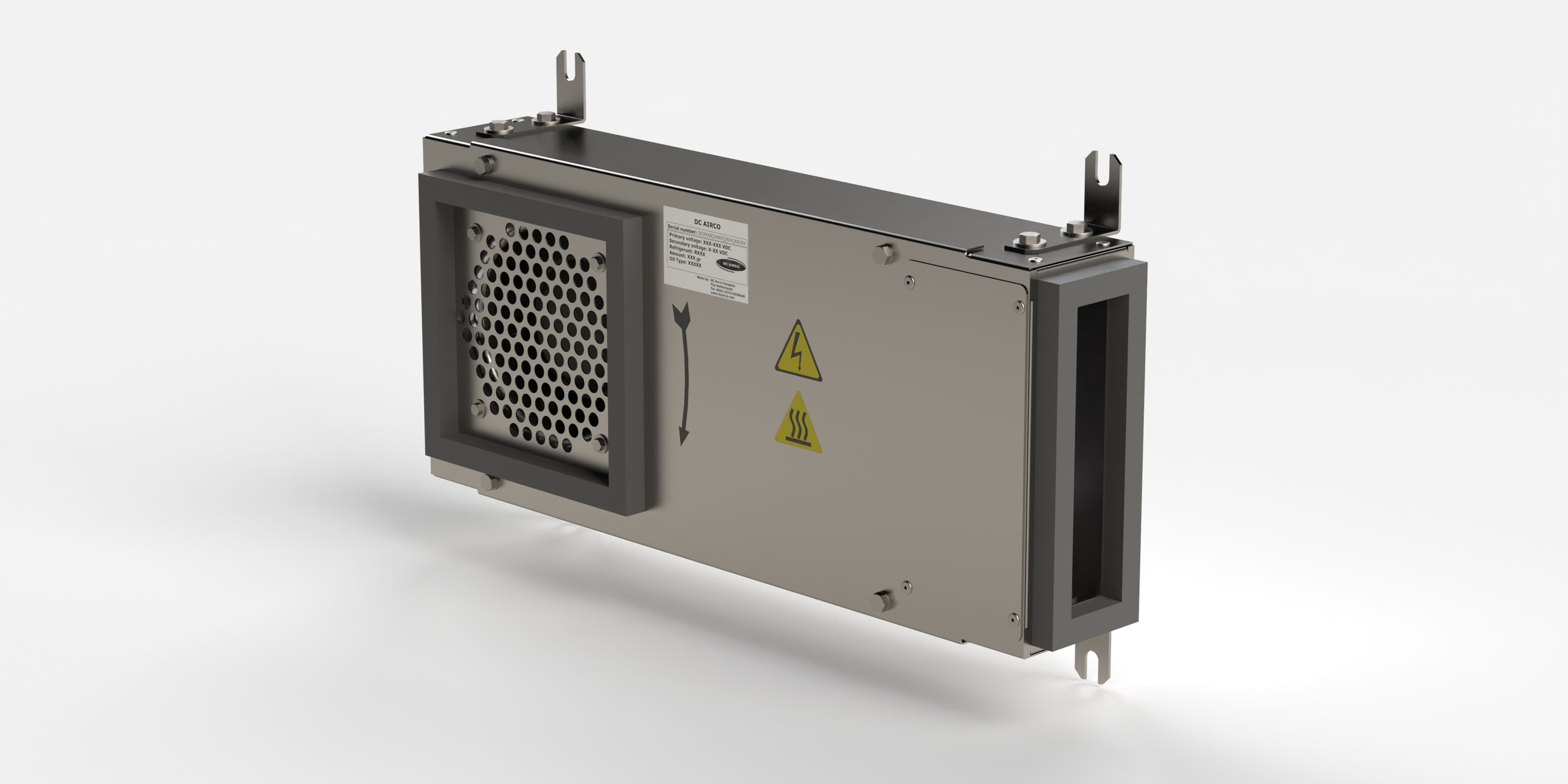

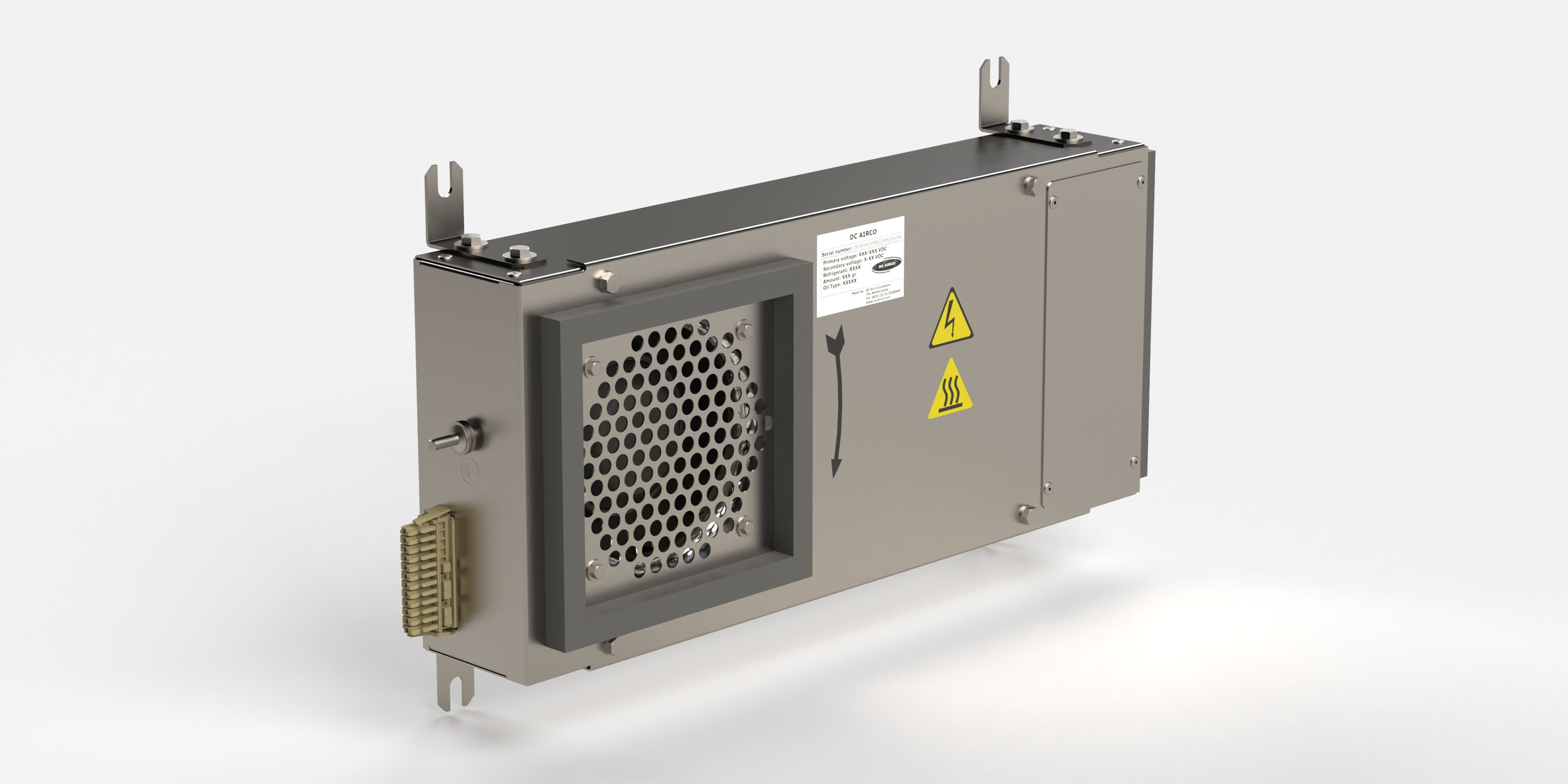

This 1.5 kW electric convector provides reliable air heating for industrial and transport use. Powered by ~230 Vac, it features a compact AISI 304 stainless steel housing and axial fan for efficient airflow. With a safety thermostat, 2500 V dielectric strength, and EN 45545-2, Hazard Level 3 (HL3) compliance, it ensures dependable performance. Laser‑engraved markings, EPDM gaskets, and IP‑rated grounding enhance safety, while its modular design allows easy adaptation with removable air‑outlet plates.
Configuration:
Monoblock
Type:
Heater
Serie:
190100Cooling Capacity:
-Heating Capacity:
0–1,5 kW
Heating Options:
Electric HeatingPrimary Voltage:
230 VacSecondairy Voltage:
-Attachements:
Under development, files will be available soon.
