| Parameter | Value |
|---|---|
| Temp control | |
| Max airflow (free blowing) | Max 820 m³/h |
| Max ambient temperature | 55 °C |
| Min ambient temperature | -20 °C |
| Electrical | |
| Primary voltage range 24 Vdc model | 16-32 Vdc |
| Control system | Through DC24000 series |
| Power consumption 24 Vdc model | 0-0,45 kW |
| Degree of protection(components to be protected from water and dust) | IP42 |
| Mechanical | |
| Size | 208 x 410 x 624 mm (L x W x H) (with air outlet, 524 H [mm] without) |
| Weight | 15 kg |
| Material | Stainless steel |
| Colour | Powder-coated RAL 7035 |
| Sound level (1 m distance non-resonating mounting) | 65 dB(A) on maximum condition |
| Hazard level (according to EN 45545) | HL3 |
| Shock and vibration category and class | Designed according to EN 61373 |
Rolling stock

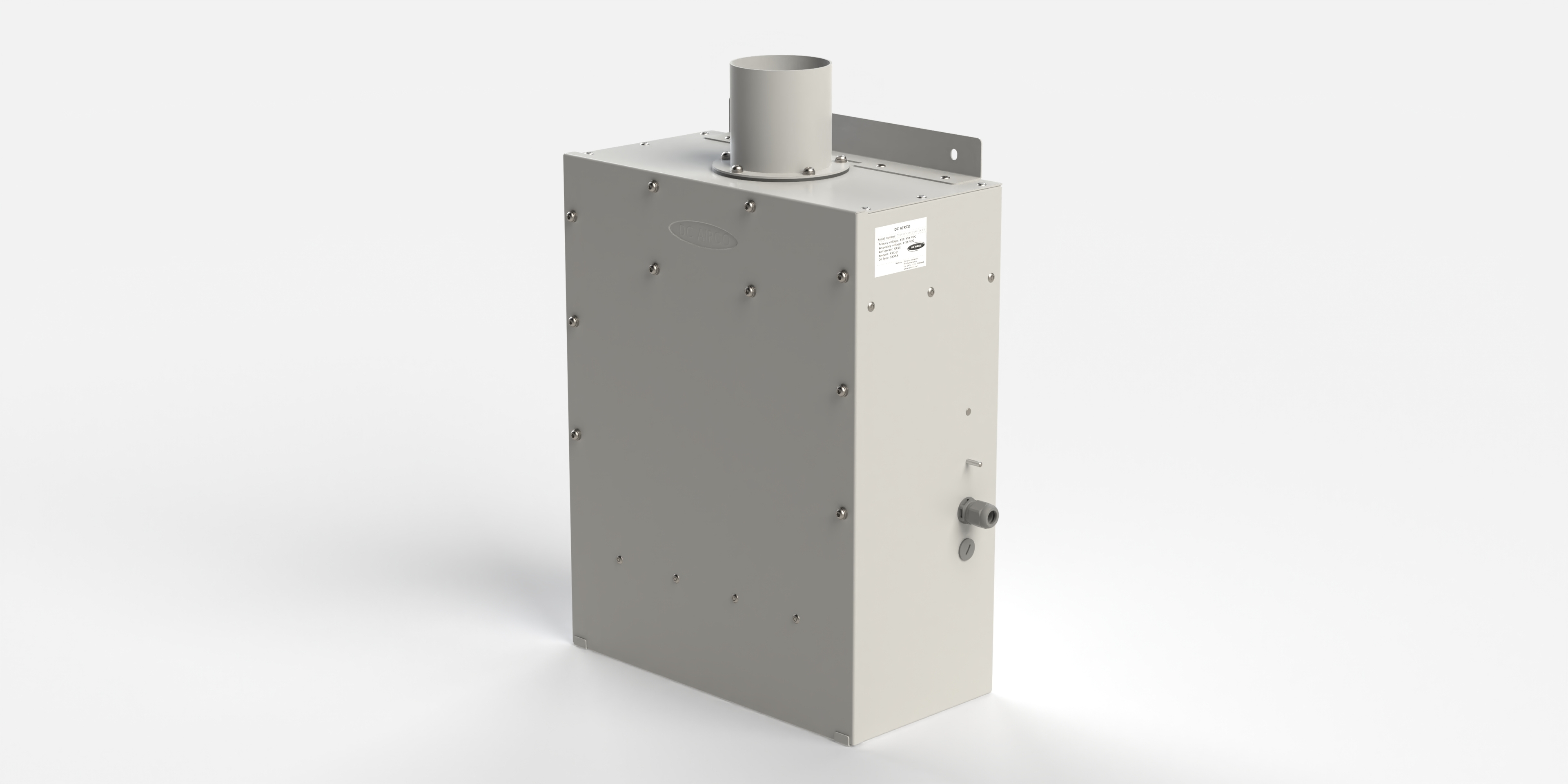

DCFC010
The DCFC010 is a fresh air unit specifically designed for operator cabs. It provides filtered air to ensure a healthy and comfortable working environment. The airflow can be easily adjusted via the HMI panel of the DC240XX rooftop units, allowing ventilation to be tailored to user needs. Its robust powder-coated stainless steel housing (RAL 7035) ensures durability and reliable operation even in demanding conditions.
Configuration:
Monoblock
Type:
Fresh Air
Serie:
DCFC010Cooling Capacity:
-Heating Capacity:
-Heating Options:
-Primary Voltage:
24 VdcSecondairy Voltage:
-Attachements:
Under development, files will be available soon.
Technical Overview
